Applicable Industry and Materials
Metals (including rare metals), engineering plastics, electroplating materials, coating materials, coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.

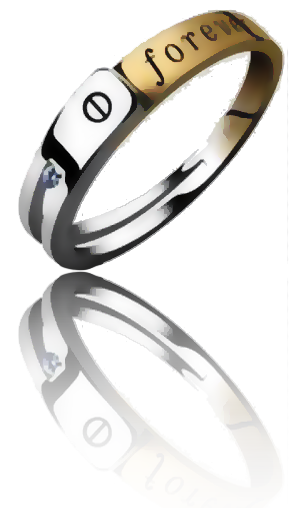

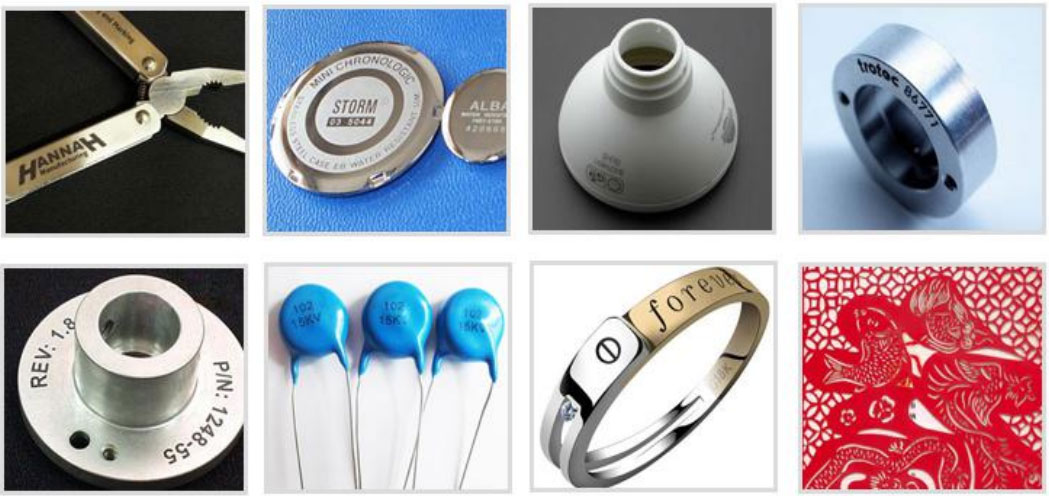

SAMPLES
Features
Most advanced.New style fiber laser marking machineis the 3rd-generation laser marking machine whichis manufactured by the most advanced laser technology in the current of the word.
Delicate marking.High quality laser beam(near to the limit of diffration,exporting TEM00 fundamental transverse mode,M2 near to 1,expanding angle of laser beam is only 1/4 of the diode laser marker).Therefore it is very suitable for delicate marking.
High Marking Speed.With high repeat frequency of the pulse,power output steadily,energy surge of single pulse is lower than 1%,can achieve high speed marking,and control the depth and shape of the facula.
Comparative advantage.The processing speed is 2-3 times than the traditional marking mahine
Compact design.The size of the machine is very small,potable.Suitable for mobile and fixed working.
10years life ,ultra-low running cost.The service life of the laser module if more than 100000hours.The unit power of the whole machine is no more than 0.5kw.
High conversion efficiency ,more than30%.
Wide range of application.The fiber laser marking machine can mark on all kinds of metal materials and some kinds of nonmetal materials.
Easy Operating.Afford the specific marking software based on windows,which is real-time adjust the laser power and pulse frequency.You can edit what you need to mark directly by the specific marking software and the graphic software such as Auto CAD,CORELdraw of photoshop.
Free of maintenance.No need adjust laser path.
MY QMark
Model BWM-20/30/50FP
Laser Power 30W /50W
Laser Wavelength 1065nm
Q-frequency 20KHZ-100KHZ
Divergence 0.3mard
Marking Range 100*100mm, 200*200mm,300*300mm
Minimum Character O.1mm
Minimum Line Width 0.01mm
Minimum Depth 0-1mm(Depending on the materials)
Engraving Line Speed ≤7000mm/s
Repeatability Accuracy ±0.001mm
Beam Quality M2:1.2-1.8
Marking Format Graphics,text,bar codes,twodimension code,
automatically marking the date,batch number, serial number,frequency,etc.Graphic Format Supported BMP,JPG,GIF,PNG,TIF,AI,DXF,DST,PLT,etc.
Working Voltage 220V/50HZ/4A
Unit Power <0.5kw
Working Environment Required Clean and dust free or dust less
Working Condition :humidity 5%-95%,Free of condensed water
